Special Stainless Steel Fluid Connector (Spray Series) – Optimized for Paint System: Conveying, Metering, Proportioning, Mixing & Atomization
Focused on fluid conveying, metering, proportioning, mixing, and atomization technologies Paint System

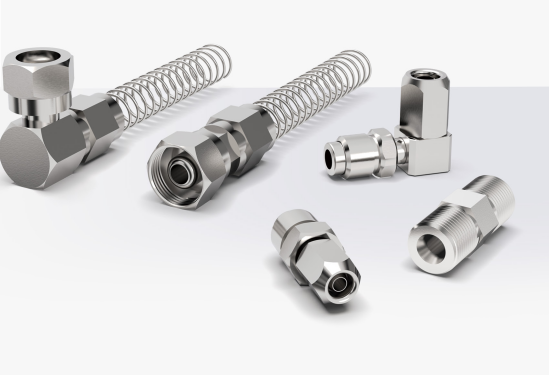

Stainless steel connectors
316 stainless steel,no dead corners,no raw material belt design,paint dedicated stainless steel connectors
|
| Material code | Specifications description |
| Straight type | 260410400852 | HC4*2.5-14 |
| 260410400813 | HC6*4-14 |
| 260410400829 | HC8*6-14 |
| 260410400853 | HC10*8-14 |
| 260410400954 | HC10*6.5-14 |
| 90 degrees | 260410400854 | HC4*2.5-14-90A |
| 260410400833 | HC6*4-14-90A |
| 260213000233 | HC8*6-14-90A |
| 260410400855 | HC10*8-14-90A |
| 260410400955 | HC10*6.5-14-90A |
Stainless steel spring connectors
Suitable forfluid pipeline connection of moving parts, simple, convenient, safe and reliable.
| Material code | Specifications description |
| Straight type | 200213000003 | 1/4"NPSM(F)-4MMID-6MMOD |
| 200213000006 | 1/4"NPSM(F)-6MMID-8MMOD |
| 200213000213 | 1/4"NPSM(F)-8MMID-10MMOD |
| 200213000148 | 1/4"NPSM(F)-4MMID-8MMOD |
| 200213000158 | 1/4"NPSM(F)-6.5mmID-10mmOD |
| 200213000005 | 3/8"NPSM(F)-4MMID-6MMOD |
| 200213000008 | 3/8"NPSM(F)-6MMID-8MMOD |
| 200213000012 | 3/8"NPSM(F)-8MMID-10MMOD |
| 200213000118 | 3/8"NPSM(F)-8MMID-12MMOD |
90
degrees | 200213000014 | )/8"NPSM(F)-9mmID-12mmOD |
| 200213000004 | 1/4"NPSM(F)-4MMID-6MMOD-90degrees |
| 200213000007 | 1/4"NPSM(F)-6MMID-8 MMOD-90degrees |
| 200213000112 | 1/4"NPSM(F)-8MMID-10MMOD-90degrees |
| 200213000149 | 1/4"NPSM(F)-4MMID-8MMOD-90degrees |
| 200213000162 | 1/4"NPSM(F)-6.5mmID-10mmOD-90degrees |
| 200213000257 | 3/8"NPSM(F)-4MMID-6MMOD-90degrees |
| 200213000009 | 3/8"NPSM(F)-6MMID-8MMOD-90degrees |
| 200213000013 | 3/8"NPSM(F)-8MMID-10MMOD-90degrees |
| 200213000116 | 3/8"NPSM(F)-8 mmID-12mmOD-90degrees |
| 200213000015 | 3/8"NPSM(F)-9mmIDA2mmOD-90degrees |
> Common stainless steel wire
| Material code | Specifications description |
Straight
type | 200208000002 | 1/4"PT(m)-304stainless steel-concave ends |
| 200208000003 | 3/8"PT(m)-304 stainless steel-concave ends |
| 200210000003 | 1/8"PT(m)-1/4"PT(m)- stainless steel-concave ends |
| 200210000006 | 3/8"PT(m)-1/4"PT(m)-304stainless steel-concave ends |
90
degrees | 200208000026 | 1/4"PT(m) 90 degrees concave ends 304 stainless |
| 200208000010 | 3/8"PT(m) 90 degrees concave ends 304 stainless |
check
valve | 260404000103 | 1/4"PT(m) |
| 200514000074 | 3/8"PT(m) |
Nylon air tubes
|
| Material code | Specifications description |
|
| 260405000082 | 2.5mmID*4mmOD | blue |
| 260405000092 | 4mmID*6mmOD | blue |
| 260405000085 | 6mmID*8mmOD | blue |
| 260405000093 | 8mmID*10mmOD | blue |
| 260405000083 | 2.5mmID*4mmOD | red |
| 260405000094 | 4mmID*6mmOD | red |
| 260405000095 | 6mmID*8mmOD | red |
| 260405000096 | 8mmID*10mmOD | red |
Spray dedicated oil pipe
|
| Material code | Specifications description |
|  Teflon | 260404000364 | 2.5mmID*4mmOD | transparent |
| 260404000365 | 4mmID*6mmOD | transparent |
| 260404000368 | 6mmID*8mmOD | transparent |
| 260404002302 | 4mmID*8mmOD | transparent |
| 260404001662 | 6.5mmID*10mmOD | transparent |
| 260404000370 | 8mmID*10mmOD | transparent |
| 260404000371 | 8mmID*12mmOD | transparent |
| 260404000372 | 9mmID*12mmOD | transparent |
| 260404006098 | 2.5mmID*4mmOD | black |
| 260404000748 | 4mmID*6mmOD | black |
| 260404000747 | 6mmID*8mmOD | black |
| 26040400 1115 | 8mmID*10mmOD | black |
|  Super soft nylon | 260404006933 | 2.5mmID*4mmOD | white |
| 260404006279 | 4mmID*6mmOD | white |
| 260404000245 | 6mmID*8mmOD | white |
| 260404006934 | 8mmID*10mmOD | white |
| 260404006935 | 4mmID*6mmOD | black |
| 260404006936 | 6mmID*8mmOD | black |
